The first standalone
Mixed Reality headset (AR + VR)

Outstanding Optics Incredible Compute Power 6DoF Compact Form Factor
lynx R1

Tech specs

Download PDF
  • Display

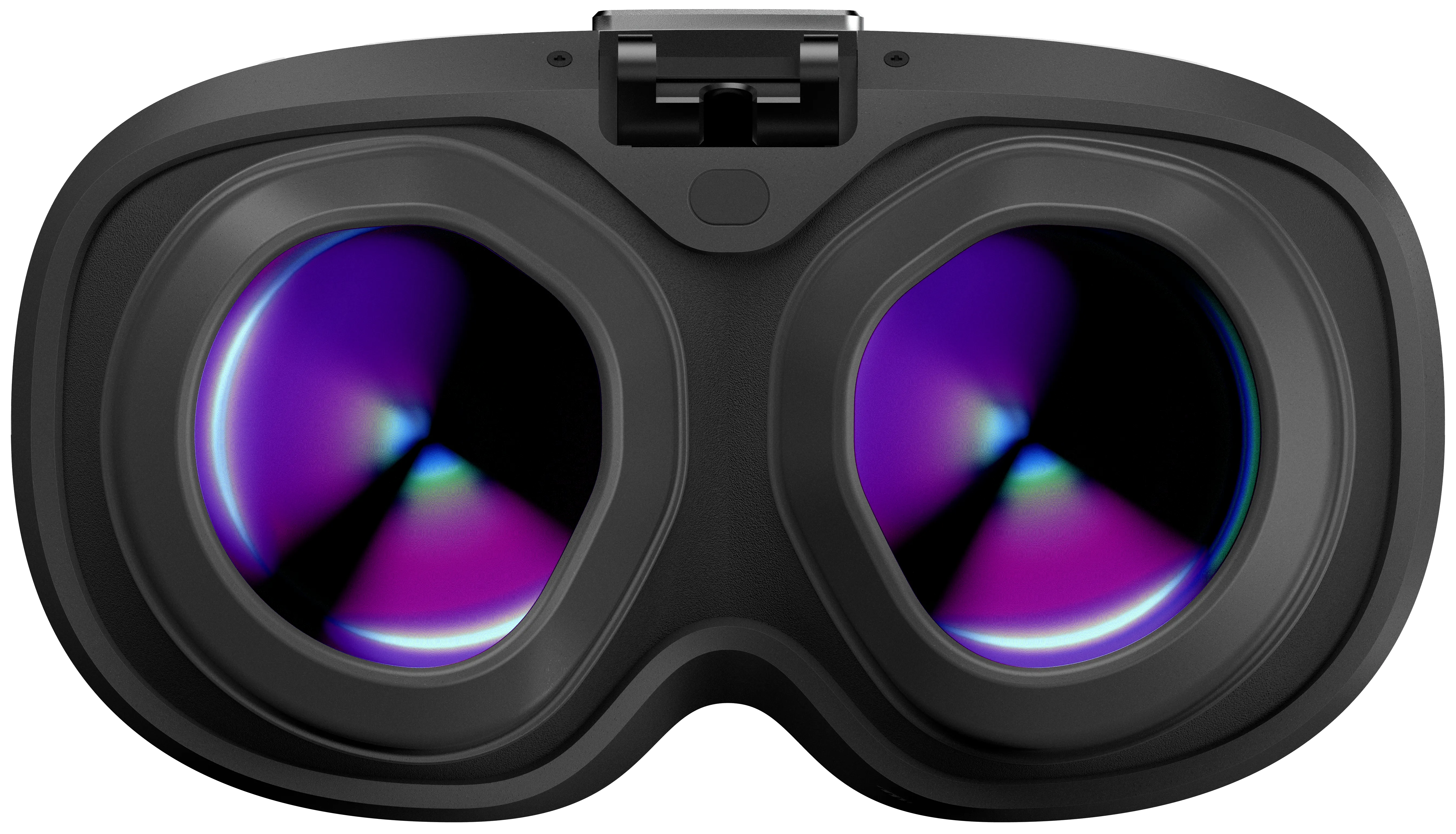

    • Optics 4-fold catadioptric freeform prism
    • Resolution Dual 1600x1600 LCD@90Hz

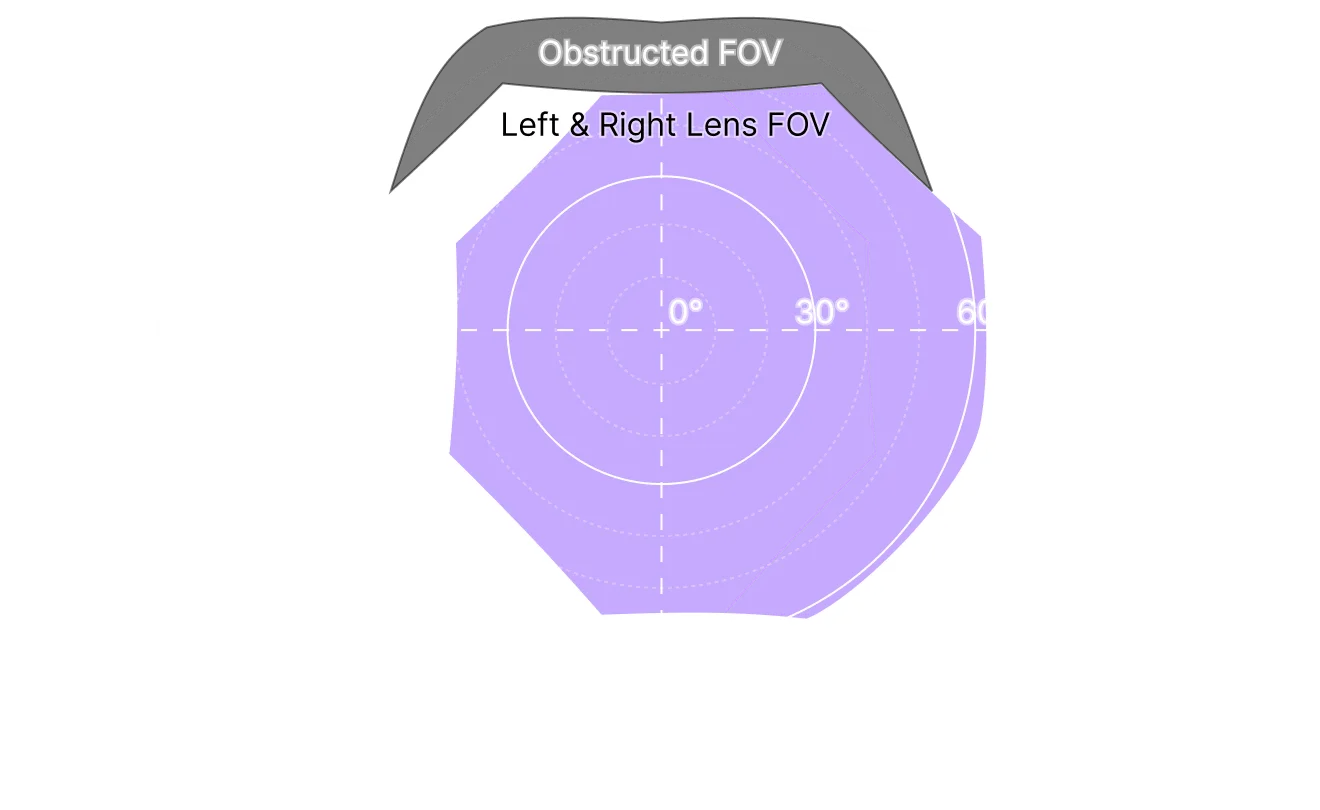

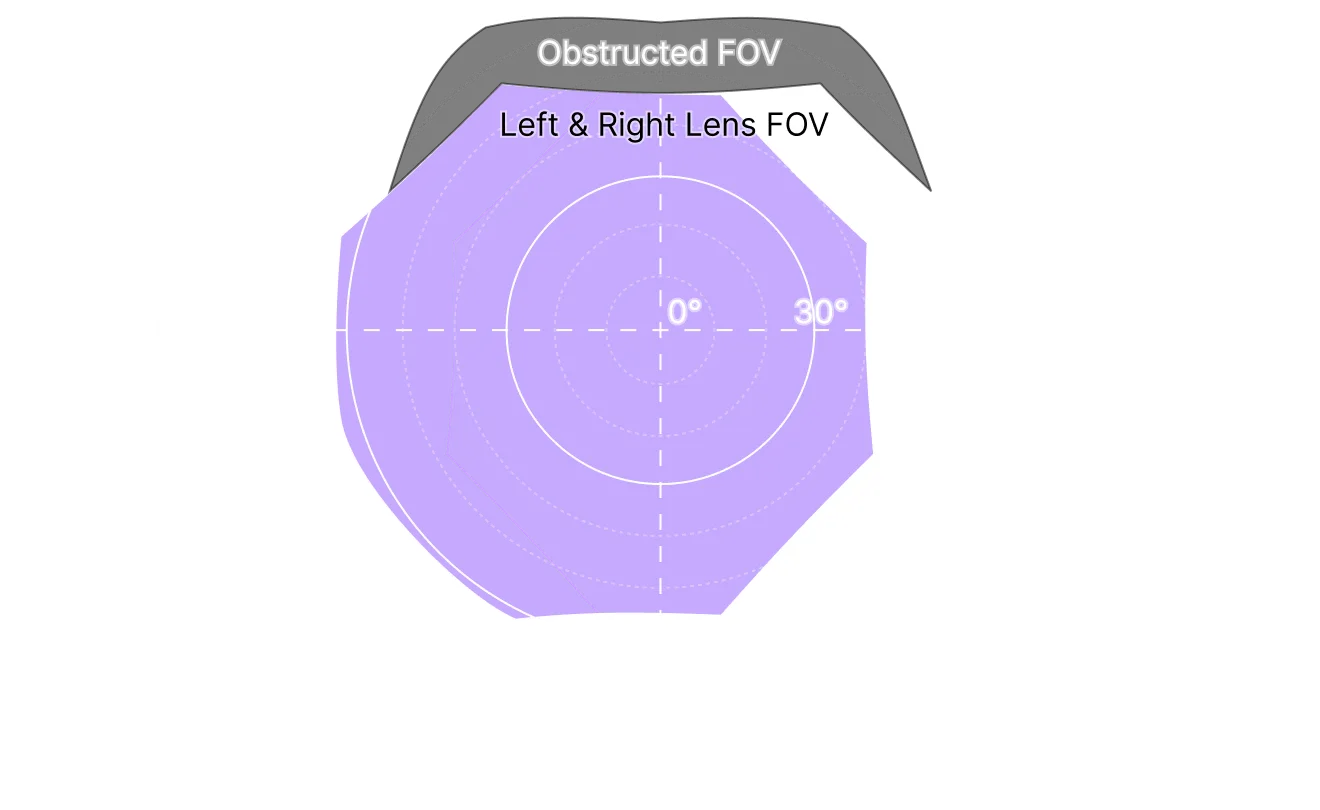

    • FoV/PPD 90° (circular) /18 (with super resolution)
  • Sensors

    • Positional tracking 2 B&W cameras
    • Eye tracking 2 IR cameras
    • RGB Cameras 2 visible light cameras
    • IMU Accelerometer, gyroscope, magnetometer
  • Audio

    • Speakers 2 stereo speakers
    • Microphone array 2 channels
  • Tracking

    • 6DoF tracking SLAM with world anchors
    • Hand tracking Two-handed, gesture recognition
    • Eye tracking Low latency tracking
  • Processing System

    • SoC Qualcomm® Snapdragon™ XR2
    • Memory 6 GB LPDDR5
    • Storage 128 GB
    • Platform Android, Unity 3D
  • Connectivity

    • Wi-Fi Wi-Fi 6 (802.11ax)
    • Bluetooth 5.0
    • USB USB Type-C
  • Power

    • Battery life 2 hours of active use
    • Cooling Passive
Learn more
lynx R1
packshot

LYNX-R1

$1499
  • DUE TODAY to reserve your headset : $150.
  • You headset will be delivered first. Products from the first batch guaranteed.
  • Fully refundable. No questions asked.
  • The remaining payment will be due in mid-2020.
Terms of Use
  • DUE TODAY: $0.
  • Optional: include a pre-order form, schedule a call with a LYNX engineer.
packshot

Lynx-R1 in the media
